Output

• Output power capacity: 2.7 KWatts / 3.0 kVA
• Max Configurable Power (Watts): 2.7 KWatts / 3.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Note: Configurable for 220 : 230 or 240 nominal output voltage
• Output Frequency (sync to mains): 47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
• Other Output Voltages: 220, 240
• Topology: Line Interactive
• Waveform type: Sine wave

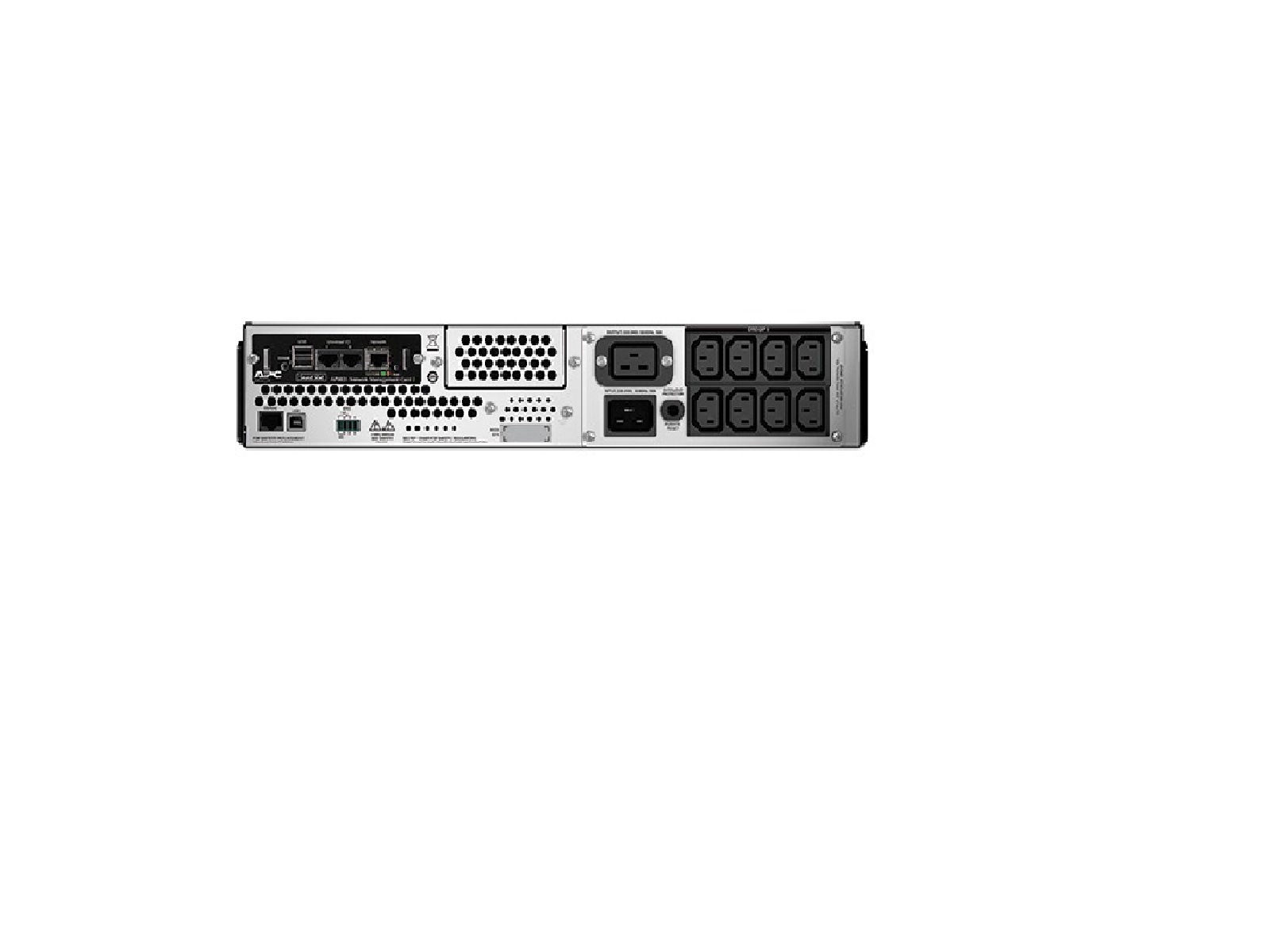

• Output Connections:
  (3) IEC Jumpers (Battery Backup)
  (1) IEC 320 C19 (Battery Backup)
  (8) IEC 320 C13 (Battery Backup)
• Transfer Time: 4ms typical : 8ms maximum

Input

• Nominal Input Voltage: 230V
• Input frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Cord Length: 2meters
• Input voltage range for main operations: 160 – 286V
• Input voltage adjustable range for mains operation: 151 – 302V
• Number of Power Cords: 1
• Other Input Voltages: 220, 240

Batteries & Runtime

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 3hour(s)
• Replacement Battery: RBC43
• Expected Battery Life (years): 3 – 5
• RBC Quantity: 1
• Runtime: View Runtime Graph/View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management

• Interface Port(s): USB
• Control panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

• Surge energy rating: 320Joules

Physical

• Maximum Height: 86mm , 8.6CM
• Maximum Width: 480mm , 48.0CM
• Maximum Depth: 683mm , 68.3CM
• Rack Height: 2U
• Net Weight: 44.28KG
• Shipping weight: 51.7KG
• Shipping Height: 254mm , 25.4CM
• Shipping Width: 600mm , 60.0CM
• Shipping Depth: 980mm , 98.0CM
• Units per Pallet: 8.0

Environmental

• Operating Temperature: 0 – 40 °C
• Operating Relative Humidity: 0 – 95 %
• Operating Elevation: 0-3000meters
• Storage Temperature: -15 – 45 °C
• Storage Relative Humidity: 0 – 95 %
• Storage Elevation: 0-15000meters
• Audible noise at 1 meter from surface of unit: 55.0dBA
• Online thermal dissipation: 348.0BTU/hr

Conformance

• Approvals: CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
• Standard warranty: 3 years repair or replace (excluding battery) and 2 year for battery

Sustainable Offer Status

• RoHS: Compliant
• REACH: REACH: Contains No SVHCs
• PEP: Available in Documentation tab
• EOLI: Available in Documentation tab
