Output

• Output power capacity: 10.0 KWatts / 10.0 kVA
• Max Configurable Power (Watts): 10.0 KWatts / 10.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 2%
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Other Output Voltages: 220, 240
• Load Crest Factor: 3 : 1
• Topology: Double Conversion Online
• Waveform type: Sine wave

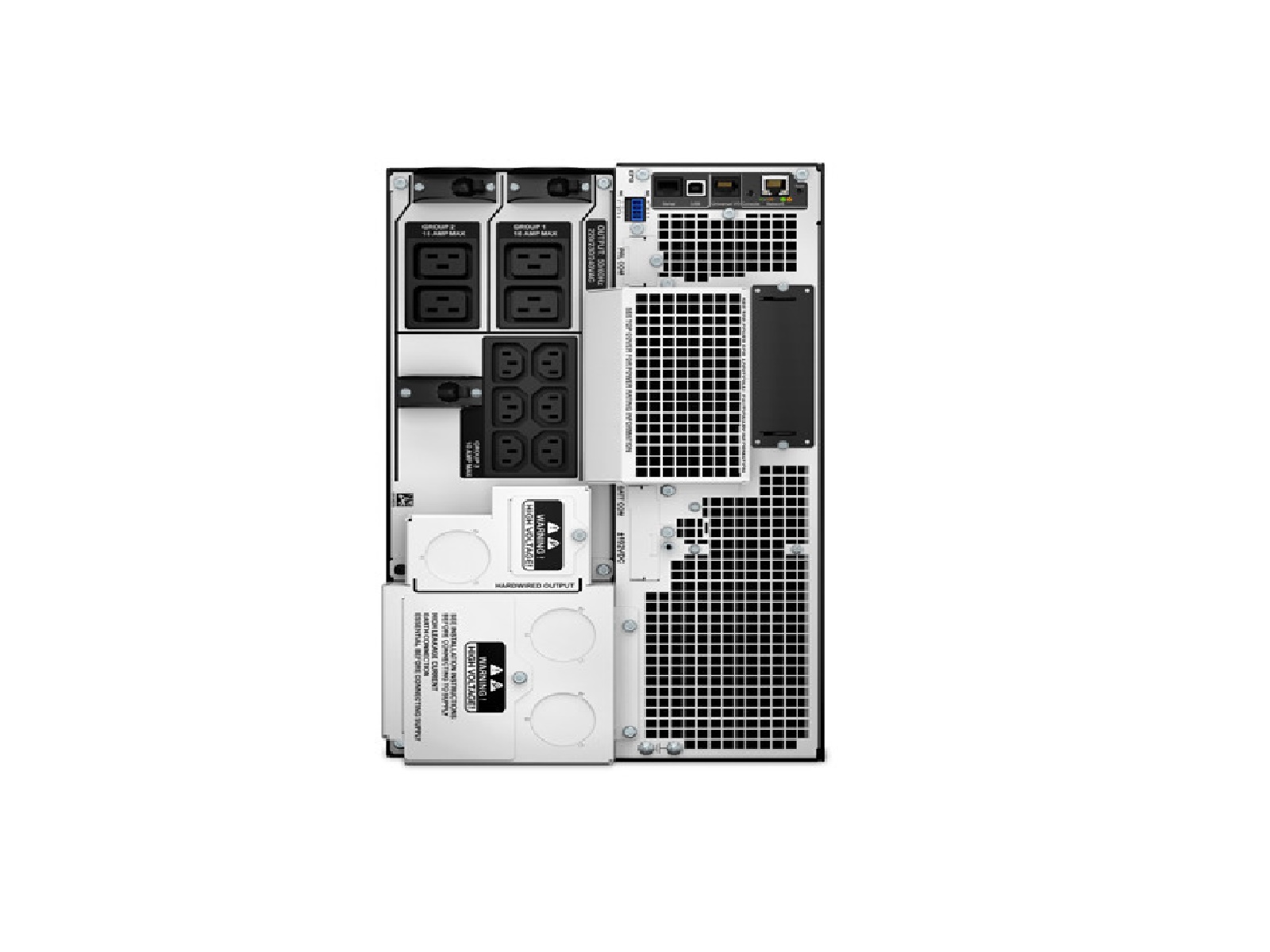

• Output Connections: (6) IEC 320 C13 (Battery Backup)/(4) IEC 320 C19 (Battery Backup)/(1) Hard Wire 3-wire (H N + G) (Battery Backup)/(3) IEC Jumpers (Battery Backup)
• Bypass: Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage: 230V , 400V 3PH
• Input frequency: 40 – 70 Hz (auto sensing)
• Input Connections: Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations: 160 – 275V
• Input voltage adjustable range for mains operation: 100 – 275 (half load), 173 – 476 (half load)V
• Other Input Voltages: 220, 240, 380, 415

Batteries & Runtime

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time: 1.5hour(s)
• Replacement Battery: APCRBC140
• Expected Battery Life (years): 3 – 5
• RBC Quantity: 2
• Extendable Run Time: 1
• Extended Run Options: APC-Smart-UPS-SRT-10000VA-230V
• Runtime: View Runtime Graph/View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management

• Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

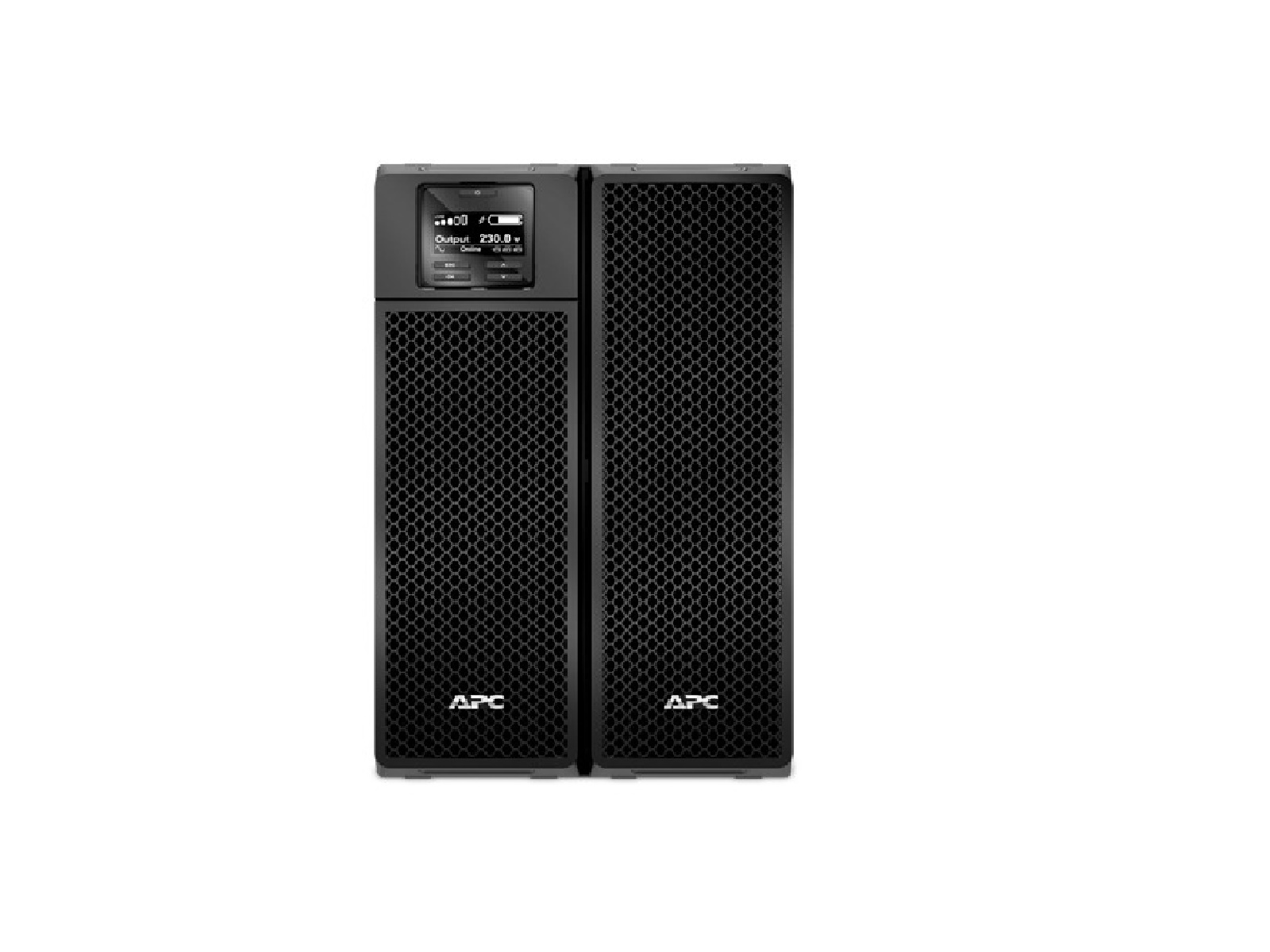

• Control panel: Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO): Yes
• Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

• Surge energy rating: 480Joules

Physical

• Maximum Height: 432mm , 43.2CM
• Maximum Width: 263mm , 26.3CM
• Maximum Depth: 715mm , 71.5CM
• Net Weight: 111.82KG
• Shipping weight: 126.82KG
• Shipping Height: 461mm , 46.1CM
• Shipping Width: 600mm , 60.0CM
• Shipping Depth : 1000mm , 100.0CM
• Color: Black

Environmental

• Operating Temperature: 0 – 40 °C
• Operating Relative Humidity: 0 – 95 %
• Operating Elevation: 0-3000meters
• Storage Temperature: -15 – 45 °C
• Storage Relative Humidity: 0 – 95% non-condensing %
• Storage Elevation: 0-15000meters
• Audible noise at 1 meter from surface of unit: 55.0dBA
• Online thermal dissipation: 1947.0BTU/hr
• Protection Class: IP 20

Conformance

• Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
• Standard warranty

  3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS: Compliant
• REACH: REACH: Contains No SVHCs
• Battery Directive: Compliant
• Battery Notes: ts_Battery_Notes
