Output

• Output power capacity: 4.5 KWatts / 5.0 kVA
• Max Configurable Power (Watts): 4.5 KWatts / 5.0 kVA
• Nominal Output Voltage: 230V
• Output Voltage Distortion: Less than 2%
• Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
• Other Output Voltages: 220, 240
• Load Crest Factor: 3 : 1
• Topology: Double Conversion Online
• Waveform type: Sine wave

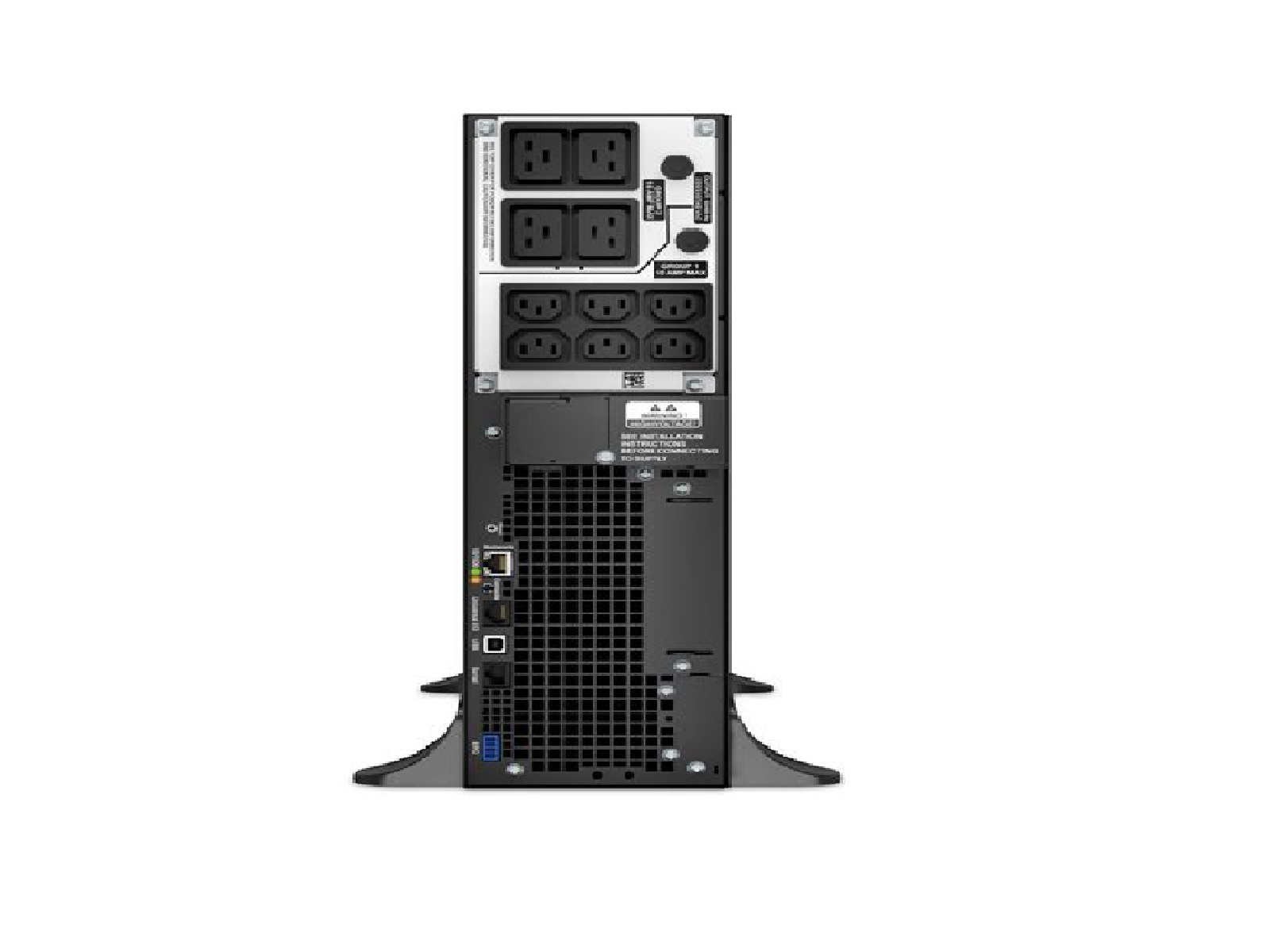

• Output Connections: (6) IEC 320 C13 (Battery Backup)/(2) IEC Jumpers (Battery Backup)/(4) IEC 320 C19 (Battery Backup)
• Bypass: Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage: 230V
• Input frequency: 40 – 70 Hz (auto sensing)
• Input Connections: Hard Wire 3 wire (1PH+N+G)
• Input voltage range for main operations: 160 – 275V
• Input voltage adjustable range for mains operation: 100 – 275 (half load)V
• Other Input Voltages: 220, 240

Batteries & Runtime

• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules: 2
• Typical recharge time: 1.5hour(s)
• Replacement Battery: APCRBC140
• Expected Battery Life (years): 3 – 5
• RBC Quantity: 1
• Extendable Run Time: 1
• Extended Run Options: APC-Smart-UPS-SRT-5000VA-230V
• Runtime: View Runtime Graph/View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management

• Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
• Control panel: Multi-function LCD status and control console
• Audible Alarm: Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO): Yes
• Available SmartSlot™ Interface Quantity: 1

Surge Protection and Filtering

• Surge energy rating: 480Joules

Physical

• Maximum Height: 432mm , 43.2CM
• Maximum Width: 130mm , 13.0CM
• Maximum Depth: 719mm , 71.94CM
• Net Weight: 54.43KG
• Shipping weight: 63.6KG
• Shipping Height: 330mm , 33.0CM
• Shipping Width: 610mm , 61.0CM
• Shipping Depth: 960mm , 96.0CM
• Color: Black
• Units per Pallet: 6.0

Environmental

• Operating Temperature: 0 – 40 °C
• Operating Relative Humidity: 0 – 95% non-condensing %
• Operating Elevation: 0-3000meters
• Storage Temperature: -15 – 45 °C
• Storage Relative Humidity: 0 – 95% non-condensing %
• Storage Elevation: 0-15000meters
• Audible noise at 1 meter from surface of unit: 55.0dBA
• Online thermal dissipation: 931.0BTU/hr
• Protection Class: IP 20

Conformance

• Approvals: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
• Standard warranty: 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

• RoHS: Compliant
• REACH: REACH: Contains No SVHCs
